Screen reader users will see links on a page listed without context,
so you should ensure the same link text is not used to point to different web
addresses.

For example:

```html
<p>
    Learn the latest about our products:
    <a href="/products/news">News</a>
</p>

<p>
    Learn the latest about our services:
    <a href="/company/news">News</a>
</p>
```

To a screen reader who is listing links, they will only hear:

* News
* News

These links appear to be the same, but they both behave differently.
One solution, which doesn't require the page design to change, is to add an
`aria-label` for each link:

```html
<p>
    Learn the latest about our products:
    <a href="/products/news" aria-label="Product news">News</a>
</p>

<p>
    Learn the latest about our services:
    <a href="/company/news" aria-label="Company news">News</a>
</p>
```

Which will be heard as:

* Product news
* Company news

To pass this checkpoint, make sure that links which point to different pages
have distinct text inside them, or that they specify ARIA labels (`aria-labelledby` or
`aria-label`), or they use hidden text only visible to screen readers
(e.g. `<span class="sr-only">...</span>`) to distinguish them from each
other.

If links point to the same page (e.g., they redirect or use tracking
parameters, but are functionally equivalent to the user) you can ignore
this issue.

a-duplicate-link-text-for-different-destinations

To comply with WCAG AA, the colour of text must sufficiently contrast with
its background color, so that people with moderate visual impairments can read it.

The [contrast ratio](https://www.w3.org/TR/UNDERSTANDING-WCAG20/visual-audio-contrast-contrast.html#contrast-ratiodef)
must be at least 4.5:1 for body text, and 3:1 for large text.

A much more demanding version of this check (1.4.6) exists for WCAG AAA. Ignoring an issue in this check
will also ignore it in that check, and vice versa.

aa-text-contrast

To comply with the strictest accessibility standard (WCAG AAA), the colour of text must
strongly contrast with its background color, so that people with significant visual impairments
can read it.

The [contrast ratio](https://www.w3.org/TR/UNDERSTANDING-WCAG20/visual-audio-contrast-contrast.html#contrast-ratiodef)
must be at least 7:1 for body text, and 4.5:1 for large text.

A far less demanding version of this check (1.4.3) exists for WCAG AA. All websites should aim to
meet the easier AA standard at a minimum. The AAA standard is desirable but far more challenging,
and may not be practical for your website.

aaa-text-contrast

Tables which contain information should have clear headers defined.

In this example, the top row of the table is a header:

| Surname        | City          |
| -------------- | ------------- |
| Washington     | London        |
| Phoenix        | Arizona       |
| Austin         | Travis        |

Notice how without the header here, it would be almost impossible to understand
what the individual values mean ("Washington" could be a city or a surname).

It is not enough to just make the headers look differently, as accessible technologies will not
recognize this (for example, a screen reader cannot 'see' different colors or fonts).
Table headings must be defined using the `<th>` tag.

This example shows how a table should use a `<th>` to mark cells as headings. Note the
use of the `col` attribute, to specify these headings are for the _column_:

```html
<table>
  <tr>
    <th scope="col">First name</th>
    <th scope="col">City</th>
  </tr>
  <tr>
    <td>Washington</td>
    <td>London</td>
  </tr>
  <tr>
    <td>Phoenix</td>
    <td>Arizona</td>
  </tr>
  <tr>
    <td>Austin</td>
    <td>Travis</td>
  </tr>
</table>
```

Tables which are used purely for layout do not need to do this. However,
[the use of tables for layout is strongly discouraged](https://www.lifewire.com/dont-use-tables-for-layout-3468941).
This check will ignore tables that it believes are purposely used for layout.

Learn more about [accessible table design (W3C)](https://www.w3.org/WAI/tutorials/tables/one-header/).

add-header-to-tables

Each page should have a well-defined page title (as defined by a single `<title>` tag).

add-page-title

Links must be defined in a specific way to be accessed by screen readers, which are used by
blind and the partially-sighted.

To work with accessibility technologies, links must contain both machine-readable text, and
a `href` attribute. If a link is not actually
pointing to a page or part of a page, it should be replaced with another semantic element, such
as a `button`, or the `<a>` tag should have a role of `button`.

For example:

```html
<a href="/about">About us</a>
```

If the link contains _nothing but an image_, that image should specify alternative text, e.g.

```html
<a href="/apple">
    <img src="apple.png" alt="Apple">
</a>
```

Before HTML5, an anchor was often used to create a target to link to, e.g.

```html
<a name="example"></a>
```

This is not supported in HTML5, and the use of anchors for targets is discouraged. Use an `id`
attribute on a non-anchor tag instead, e.g.

```html
<div id="example"> ... </div>
```

Empty links (e.g. `<a></a>`) are often incorrectly used for buttons or controls in a
JavaScript application. In these cases, you should usually define the link as having a more appropriate
role, e.g. as a button. To do this, use the `role` attribute (e.g `<a role="button">`), or replace
the `<a>` tag with a more appropriate tag, such as `<button>`.

For more details, see [Technique H91](https://www.w3.org/TR/2016/NOTE-WCAG20-TECHS-20161007/H91)
and learn about [ARIA roles](https://www.sitepoint.com/how-to-use-aria-effectively-with-html5/).

bad-anchor

Two adjacent links should not point to the same destination. You almost always want to combine the
two links.

For example, it is quite common to link an image and text together like this:

```html
<a href="news.html">
    <img src="photo.jpg" alt="" />
</a>
<a href="news.html">
    News
</a>
```

These adjacent links should be combined like so:

```html
<a href="news.html">
    <img src="photo.jpg" alt="" />
    News
</a>
```

Links to `#` are ignored, as these are nearly always placeholders for JavaScript, e.g.:

```html
<a href="#" onclick="approve()">
    OK
</a>
<a href="#" onclick="reject()">
    Cancel
</a>
```

# Justification

Many users of assistive technology are only able to experience content sequentially - that is, they must
step through each part of the page, one part at a time. Often this is a slow process, potentially
hampered by a physical impediment.

Stepping through redundant links is time consuming; for example users of a screen reader must
hear each link read aloud in turn.

This also simplifies your code.

# Methodology

1. Find all links (`<a>` tags) on the page.
2. Ignore links pointing to `#`, as these are usually placeholders for JavaScript.
3. Flag links which are (a) separated only by whitespace and (b) which point to the
   same absolute URL.

# Learn more

Read about [Technique H2](https://www.w3.org/TR/WCAG20-TECHS/H2) on how to combine
an adjacent image and texts links.

duplicate-adjacent-link

All `id` attributes on a page must be unique, or accessible technologies used by the page
can stop working.

## Example

The duplicate `id` here makes it unclear which label belongs to which input field:

```html
<label for="name">Your name</label>
<input id="name">

<label for="name">Company name</label>
<input id="name">
```

As a result, accessible technologies like screen readers can fail to read out the
correct text, or may read out no text at all.

Similar issues can occur when using `aria-labelledby` and `aria-describedby`.

## How to fix

Ensure all `id` attributes on a page are unique.

## More information

See [Technique H93](https://www.w3.org/TR/2016/NOTE-WCAG20-TECHS-20161007/H93)
for more information.

duplicate-id

All controls on the page - including links, buttons, and fields - should clearly
indicate when they have been selected by the keyboard.

This is a stricter version of [WCAG 2.4.7](https://www.w3.org/WAI/WCAG21/Understanding/focus-visible.html),
which requires that the focus indicator is visible, but doesn't specify how clearly
it should be visible.

You can confirm this yourself by loading a webpage and using the Tab key to navigate
through it. Anything you can select should clearly alter its appearance when selected.
For example, a text field might change color, or have a distinctive border applied.

## The requirements

The [official requirements](https://w3c.github.io/wcag/understanding/focus-appearance.html) are
complicated. A simplified version is:

* Surround the control with a solid outline
* The outline must have at least 3:1 contrast with its background
* The outline must have at least 3:1 contrast with its surroundings, or be at least 2px thick

The actual requirements allow for more variation, but generally require that you
calculate the perimeter and/or area of the focus area, which can be very difficult.

## How to fix

Links and form controls should use a focus selector which contrasts with their
unfocused state, as well as any surroundings of the focus state.

In practice, the easiest way to accomplish this is to use a two-color focus, like so:

```css
/* ensure high-contrast mode still has an indicator */
outline: 2px transparent solid;

/* Apply a thick yellow box-shadow with
   a thin dark blue indicator in the middle */
box-shadow: 0 0 0 2px #F9F9D1, 0 0 0 4px #396196, 0 0 4px 8px #F9F9D1;
```

From [Technique C40](https://www.w3.org/WAI/WCAG22/Techniques/css/C40).

Using two contrasting colors guarantees that the focus state will be visible,
regardless of the background or surrounding colors.

## Troubleshooting

### Elements appear to change in the browser

Focus states should be defined in CSS alone, and not require JavaScript to work.

Try disabling JavaScript on the page, and see if focus is still visible. If it not,
then the focus state won't work with assistive technologies that don't have a physical
keyboard, e.g. mobile phones.

Some more unusual means of implementing a focus state cannot be detected or measured
automatically. These include:

* Focus implemented via pseudo-elements - such as `::after` or `::before`.
* Focus using `:focus-within` (JavaScript current provides no way to access these).
* Focus cascaded to child elements, e.g. a `<span>` inside an `<a>` tag. We detect
  some of these cases, but there are variations that we cannot detect.

Currently, there is no practical way to assess these focus states automatically.

### Elements over images not analyzed

Silktide cannot assess the contrast of elements that are over images. This is because
the contrast of an element is calculated by comparing the color of the element with the
color of the background.

If the element is over an image, the background color is the
color of the image, which varies from pixel-to-pixel, and may vary further as the page
is resized, due to responsive design.

### Unexpected elements are focusable

You may be surprised to see tags like `<div>` or `<span>` being shown as focusable.
If an element has a `tabindex` of 0 or higher, it becomes focusable. Any HTML tag can be made
focusable in this way, this is so that custom controls (e.g. your own drop-down menus, or
sliders) can support keyboard navigation. [Learn more about tabindex on MDN](https://developer.mozilla.org/en-US/docs/Web/HTML/Global_attributes/tabindex).

## Further reading

This is part of the draft WCAG 2.2 specification and is subject to change.

* [WCAG 2.4.11](https://w3c.github.io/wcag/understanding/focus-appearance.html)

ensure-focus-appearance

When selecting a user interface component with the keyboard, the focus indicator must
not be partly obscured by anything in front of it. This is the stricter version of this check for
Level AAA.

## Why this matters

When using a keyboard, it is important that the user can see where they are on the page.
If the focus indicator is obscured, the user may not know where they are, and may not
be able to interact with the page.

## Examples

Most common examples include:

* Banners at the top or bottom of the page, such as cookie banners
* Fixed navigation bars
* Fixed footers
* Popup modals, such as cookie consent modals

## How to fix

With elements that cover part of the screen, such as cookie banners, ensure
that the user can scroll to see any content behind the banner, without having to close
the banner.

With popup modals, it should usually be impossible to focus anything behind the modal.
Most common modal frameworks will automatically trap focus within the modal, so that
this is impossible. Example: [Bootstrap Modal](https://getbootstrap.com/docs/5.2/components/modal/#live-demo).

## Further reading

This is part of the draft WCAG 2.2 specification and is subject to change.

* [WCAG 2.4.13](https://w3c.github.io/wcag/understanding/focus-not-obscured-enhanced.html)

ensure-focus-is-not-obscured-enhanced

All controls on the page - including links, buttons, and fields - should show when
they have been selected by the keyboard.

You can confirm this yourself by loading a webpage and using the Tab key to navigate
through it. Anything you can select should alter its appearance when selected.
For example, a text field might change color, or have a distinctive border applied.

This is default behavior for all standard web controls, and so if this issue is appearing
it is because this default behavior has been disabled. Or alternatively, if you have written
your own custom controls, these will need styling to support focus states.

## How to fix

Links and form controls typically define an `outline` CSS style, which ensures
they are highlighted automatically, for example:

```css
input:focus (outline: 2px solid red);
```

If you choose to override or disable the default `outline`, you should specify an accessible
alternative, such as a border or background color.

### Elements appear to change in the browser

Focus states should be defined in CSS alone, and not require JavaScript to work.

Try disabling JavaScript on the page, and see if focus is still visible. If it not,
then the focus state won't work with assistive technologies that don't have a physical
keyboard, e.g. mobile phones.

Some more unusual means of implementing a focus state cannot be detected or measured
automatically. These include:

* Focus implemented via pseudo-elements - such as `::after` or `::before`.
* Focus using `:focus-within` (JavaScript current provides no way to access these).
* Focus cascaded to child elements, e.g. a `<span>` inside an `<a>` tag. We detect
  some of these cases, but there are variations that we cannot detect.

Currently, there is no practical way to assess these focus states automatically.

### Unexpected elements are focusable

You may be surprised to see tags like `<div>` or `<span>` being shown as focusable.
If an element has a `tabindex` of 0 or higher, it becomes focusable. Any HTML tag can be made
focusable in this way, this is so that custom controls (e.g. your own drop-down menus, or
sliders) can support keyboard navigation. [Learn more about tabindex on MDN](https://developer.mozilla.org/en-US/docs/Web/HTML/Global_attributes/tabindex).

## Further reading

* [WCAG 2.4.7](https://www.w3.org/WAI/WCAG22/Understanding/focus-visible.html)

ensure-focus-is-visible

All interactive components on a page, such as buttons or menus, should be far enough apart
from other interactive areas, to avoid them being used by mistake.

This ensures people with motor impairments can easily click or tap on the right element.

## Methodology

This check is run on both the mobile and desktop versions of every page. Results
for each may differ.

1. All interactive elements are identified, including buttons, links, and form controls.
2. If an element is not normally visible, it is ignored. This includes elements which
   are positioned offscreen or cropped (e.g. for 'screen-reader only' text).
3. If an element is larger than 24 CSS pixels in both dimensions, it passes.
4. Otherwise, the element is compared to all other elements on the page.
5. The minimum horizontal gap between the element is calculated as 24 CSS pixels,
   minus the width of the element.
6. The minimum vertical gap between the element is calculated as 24 CSS pixels,
   minus the height of the element.
7. If another element falls within the minimum horizontal or vertical gap, the
   element fails, unless both are links that point to the same place.

## Further reading

This is part of the draft WCAG 2.2 specification and is subject to change.

* [Target Size (Minimum)](https://w3c.github.io/wcag/understanding/target-size-minimum.html)

ensure-minimum-target-size

Most content should be written so people with a lower secondary level of education can understand it.
Where this is not possible, supplemental content or an alternative version should be provided.

This check highlights pages with a reading age of 16 years or higher. Only pages with at least 100 words
of content (excluding navigation, footers, etc) are considered.

For more information, see [WCAG SC 3.1.5](https://www.w3.org/TR/UNDERSTANDING-WCAG20/meaning-supplements.html).

ensure-reading-ability-is-not-advanced

All interactive components on a page, such as buttons or fields, should ideally be large enough
to be easily used by people with motor impairments.

This ensures people with motor impairments can easily click or tap on the element.

The recommended size is 44 x 44 CSS pixels, with some exceptions:

* **Equivalent available** - the functionality provided by
  the control is available elsewhere, and large enough, on the same page.
* **Inline text** - the control appears inside a sentence or block of text.
* **User Agent control** - the size of the target is determined by the user agent
  and is not modified by the author. Generally this is not the case for web content.
* **Essential** - the size of the target is essential to the information being conveyed,
  e.g. a tutorial demonstrating what a small button looks like. This exception is rare.

## Applying this check

Nearly all websites will fail this check by default. The minimum size requirement
is larger than most links and controls on most websites.

This is the much stricter version of the WCAG 2.2 AA check for target size. Most websites
should focus on the AA check before considering this AAA check:

* [Target Size (Minimum)](https://w3c.github.io/wcag/understanding/target-size-minimum.html)

## Methodology

This check is run on both the mobile and desktop versions of every page. Results
for each may differ.

1. All interactive elements are identified, including buttons, links, and form controls.
2. If an element is preceded or followed directly by a non-empty text node, the control
   is ignored.
3. If an element is not normally visible, it is ignored. This includes elements which
   are positioned offscreen or cropped (e.g. for 'screen-reader only' text).
4. If an element is a link, and another visible link on the page points to the same URL, with
   that other link meeting the size requirements, the element is ignored.
5. Otherwise, the element must have a minimum size of 44 x 44 CSS pixels.

## Troubleshooting

Silktide only records the first 100 instances of a failure on a page. Because failures
of this check are common, it is possible that your page has more than 100 failures, but
only the first 100 will be shown.

## Further reading

* [Target Size (Enhanced)](https://www.w3.org/WAI/WCAG22/Understanding/target-size-enhanced)

ensure-reasonable-target-size

When viewed on small screens (like mobile phones) content should be large enough to
read without being zoomed-into and scrolled in two dimensions.

WCAG 2.1 specifically requires this for:

+ Vertical scrolling content at a width equivalent to 320 CSS pixels
+ Horizontal scrolling content at a height equivalent to 256 CSS pixels

This issue almost always indicates that the webpage has not been designed
to work on mobile devices at all.

extreme-zoom-scrolling

When an image is the only content of a link, it should specify alternative text,
via an `alt` attribute. The alternative text should describe the purpose of the link.

Without this, some users will be unable to determine what a link does, for example anyone
using a screen reader.

To fix this, simply add an `alt` attribute to the image inside the link, e.g.:

```html
<a href="/apple">
    <img src="apple.png" alt="Apple">
</a>
```

img-in-link-missing-alt

The purpose of a link should be clear from the text inside the link. Links like "learn more" are
not helpful to users with accessible technology.

Links should also avoid redundantly saying that they are links, e.g. "link to page" as screen
readers will read these out with the word "link" added, e.g. "link link to page".

Exceptions to these rules are allowed where the purpose of a link would be ambiguous to users
in general.

link-purpose-a

Avoid opening links in a new tab or window. Where you must do this, include an explanation
in the text of the link.

## Why this matters

Opening links in a new tab or window breaks the back button and can be disorientating for
novice web users, and the visually impaired. Generally you should avoid opening links in a
new tab or window, but if you have to, you should include text explaining that this will happen.

## How to fix

An explanation must be clear in the accessible text for the link. For example:

```html
<a href="products.html" target="_blank">
    Products (opens in new window)
</a>
```

Or, for an image inside a link:

```html
<a href="products.html" target="_blank">
    <img src="products.jpg" alt="Products (opens in new window)">
</a>
```

Rather than updating all of your links manually to do this, you can add a simple CSS
selector, such as:

```css
a[target="_blank"]:after {
    content: " (opens in new window)";
}
```

Note that doing this with an icon, is not sufficient to pass this check. The text must be
readable by screen readers.

Alternatively you can override the link text for accessible technologies (like screenreaders),
so that the appearance of the link does not change. For example:

```html
<a href="products.html" target="_blank" aria-label="Products (opens in new window)">
    Products
</a>
```

Note that if you do this, the `aria-label` will replace the text content of the link completely,
so it must still make sense in isolation.

## Terminology

Although it is common to say "opens in new window", almost all browsers now use tabs, and
so this terminology is potentially confusing. You may prefer: "opens in new tab".

## Methodology

1. Silktide considers all links on a page with a `target` attribute of `_blank`.
2. For each link, Silktide considers the screen-readable text of the link, which includes:
   * The text content of the link
   * Any `alt` text inside any images inside the link
   * Any `aria-label` or `aria-labelled-by` text
   * The `content` of the pseudo-elements `:before` and `:after`
3. This text is analysed for the presence of common text, including "opens new tab"
    and "opens new window". If the text is not found, the link fails the test.

## Further reading

Generally best practice is to avoid opening links in a new tab or window.

The W3C provides detailed guidance on
[when opening a link in a new window may be appropriate](https://www.w3.org/TR/WCAG20-TECHS/G200.html).

link-text-explains-open-in-new-window

Do not link to an anchor on the page that does not exist. For example:
linking to `#content` without a valid destination such as `<body id="content"></body>`.

A common web design pattern is to use a named anchor to show an element via JavaScript, e.g.

```html
<a href="#foo" onclick="$('.bar').toggle();">Click me</a>
<div class="bar">
    This is some content.
</div>
```

In these cases, the anchor (`#foo`) should point to the `id` of the hidden element:

```html
<a href="#foo" onclick="$('#foo').toggle();">Click me</a>
<div id="foo">
    This is some content.
</div>
```

This way the semantic intent of the link is preserved, even without JavaScript.
Note that doing so may require modification to your script, to prevent automatic
scrolling to the named anchor.

linking-to-anchor-on-page-that-does-not-exist

Lists (e.g., `<ul>` or `<ol>`) should only contain list items (`<li>`) as a direct descendant
to ensure that screen readers can accurately report the amount of items contained in the list.

## Example

In the following example, some screen readers would say this list has two items, instead of
four:

```html
<ul>
    <div class="some_class">
        <li>Example 1</li>
    </div>
    <div class="some_other_class">
        <li>Example 2</li>
        <li>Example 3</li>
        <li>Example 4</li>
    </div>
</ul>
```

To fix this, you would need to remove the `<div class="some_class">` and
`<div class="some_other_class>` elements and ensure only `<li>` list items remain.

## Further reading

The [formal specification for the list element](https://developer.mozilla.org/en-US/docs/Web/HTML/Element/ul)
shows what is and is not permitted inside an `<ul>` and `<ol>`.

See [Technique H88](https://www.w3.org/TR/WCAG20-TECHS/H88.html) for more information.

list-not-following-semantics

Lists of related items should be written [semantically](https://html.com/semantic-markup/) as a
list.

Usually this means rewriting these to use the `<ul>` or `<ol>` tags.

This allows assistive technologies to more easily navigate from item to
item, or past entire groups of links if the user wants to.

## Examples

### Navigation

This navigation:

```html
<a href="/about">About us</a>
<a href="/products">Products</a>
<a href="/contact">Contact us</a>
```

Should be rewritten as a list:

```html
<ul>
  <li><a href="/about">About us</a></li>
  <li><a href="/products">Products</a></li>
  <li><a href="/contact">Contact us</a></li>
</ul>
```

### Tables for content

This single-column table is redundant. There is no
value in placing the content in a table, which makes
it harder for screen reader users to interpret and interact
with.

```html
<table>
  <tr>
    <td>
      Banana
    </td>
  </tr>
  <tr>
    <td>
      Apple
    </td>
  </tr>
  <tr>
    <td>
      Pear
    </td>
  </tr>
</table>
```

Should be rewritten as a list:

```html
<ul>
  <li>Banana</li>
  <li>Apple</li>
  <li>Pear</li>
</ul>
```

## Justification

Users of assistive technologies, like screen readers, can skip an entire
list in one step. In some cases, they can even search inside a list.

These aids are not available where links are written outside a list.
Failing to use lists correctly can force users to have to step through
hundreds of items one at a time.

## Methodology

1. Any single-column tables are automatically considered
   redundant lists.
2. For non-table elements, recursively work down the page looking inside
   each element for links separated by minimal amounts of non-link text.
   If the non-link text is below 30 characters
   in length, we assume we're inside content that should be a list.
   Some exceptions are made, e.g. the presence of an `<hr>` would break
   out of the list.

## More information

See [Technique
H48](https://www.w3.org/TR/2016/NOTE-WCAG20-TECHS-20161007/H48) for
details.

mark-navigation-section-as-list

All images, video, audio and other media should specify appropriate
[alternative text](https://help.silktide.com/articles/alternative-text/).

For example:

```html
<img src="apple.png" alt="Apple">
```

Alternative text should be descriptive and useful. We recommend you read
[this comprehensive guide to writing alternative text](https://webaim.org/techniques/alttext/)
by WebAIM.

The W3C also provide more information on how to satisfy this check in [Technique H37](https://www.w3.org/TR/WCAG20-TECHS/H37).

missing-alt

The first heading in a PDF document should be a Heading 1.

Failure to meet this indicates that either:

1. Headings are incorrectly structured (e.g. H2 before H1)
2. Or, the order of elements in the PDF is incorrect

## More information

See [PDF9: Providing headings by marking content with heading tags in PDF documents](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF9)
from the WCAG specification.

pdf-headings-h1-first

Headings in a PDF should follow the sequence Heading 1 > Heading 2 > Heading 3 without skipping intermediate headings.

It is acceptable to 'go back' to previous styles/headings but the sequence should then continue without missing headings.

See [WCAG](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF9)

pdf-headings-order

Bookmarks (also known as outline entries) should be applied to long PDFs to
provide a hierarchical overview of the document to help aid navigation.

WCAG guidelines do not specify how many pages are required to be classified as a
long PDF. Because of this Silktide treats PDFs of 21 or more pages as long.
This matches [Adobe Acrobat](https://helpx.adobe.com/acrobat/using/create-verify-pdf-accessibility.html?trackingid=KACNN#Bookmarks)
interpretation.

See [WCAG](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF2) for advice.

pdf-long-document-requires-bookmarks

PDFs should have a default document language set to help render text accurately and help screen readers pronounce words correctly.
See [WCAG](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF16) for reference.

pdf-missing-default-language

PDF files should have headings.
 See [WCAG](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF9)

pdf-missing-headings

PDFs need to be tagged in a valid reading order for accessibility. See [Adobe's guide](https://helpx.adobe.com/uk/acrobat/using/creating-accessible-pdfs.html#tag_the_pdf) and [WCAG](https://www.w3.org/TR/WCAG20-TECHS/pdf.html#PDF3) for advice.

pdf-must-be-tagged

All PDFs must define a valid title. This must not be confused with the file name.
See [PDF 18](https://www.w3.org/TR/WCAG20-TECHS/PDF18.html) for details.

pdf-no-title

PDFs need to be machine readable for accessibility software to be able to access them.
Scanned documents or password protected ones are usually not machine readable.

pdf-not-machine-readable

When viewed on small screens (like mobile phones) content must fit without
requiring scrolling in two dimensions.

WCAG 2.1 specifically requires this for:

+ Vertical scrolling content at a width equivalent to 320 CSS pixels
+ Horizontal scrolling content at a height equivalent to 256 CSS pixels

Except for parts of the content which require two-dimensional layout for usage or meaning,
such as a maps application.

two-dimensional-scrolling

wcag-22.score

wcag-22-a.score

wcag-22-aa.score

wcag-22-aaa.score

website.pages

website.documents

Heading elements (`<h1>`, `<h2>`, ...) must contain some machine-readable
text content.

Heading should never be empty, or just contain whitespace:

```html
<h1>   </h1>
```

Headings which contain images or other media must specify alternative text:

```html
<h1>
    <img src="heading.png" alt="Press releases">
</h1>
```

See [Technique H42](https://www.w3.org/TR/WCAG20-TECHS/H42) for more details.

empty-heading-content

When selecting a user interface component with the keyboard, the focus indicator must
not be completely obscured by anything in front of it.

## Why this matters

When using a keyboard, it is important that the user can see where they are on the page.
If the focus indicator is obscured, the user may not know where they are, and may not
be able to interact with the page.

## Examples

Most common examples include:

* Banners at the top or bottom of the page, such as cookie banners
* Fixed navigation bars
* Fixed footers
* Popup modals, such as cookie consent modals

## How to fix

With elements that cover part of the screen, such as cookie banners, ensure
that the user can scroll to see any content behind the banner, without having to close
the banner.

With popup modals, it should usually be impossible to focus anything behind the modal.
Most common modal frameworks will automatically trap focus within the modal, so that
this is impossible. Example: [Bootstrap Modal](https://getbootstrap.com/docs/5.2/components/modal/#live-demo).

## Further reading

This is part of the draft WCAG 2.2 specification and is subject to change.

* [WCAG 2.4.12](https://www.w3.org/WAI/WCAG22/Understanding/focus-not-obscured.html)

ensure-focus-is-not-obscured-minimum

All frames must define a readable title, which briefly described the contents of that frame.

Note that this is not the same as a `<title>` tag inside the iframe, which is insufficient.
You must provide a meaningful description for the frame using the `title` attribute.

Examples:

```html
<iframe title="Advertisement" src="ad.html">
```

```html
<frame title="Advertisement" src="ad.html">
```

# Why this matters

Accessible technologies such as screen readers rely on the `title` attribute to list
the frames on a given page.

Without a title, it is impossible to know what the frame contains, and the user must
navigate inside it, and explore the contents of the frame to figure this out.

Often iframes are used for technologies like banner adverts, videos, or chat widgets. The
absence of a `title` makes these areas of the page much harder to identify, understand,
or use.

# How titles are tested

Frames which are not presented to screen readers are ignored. This includes invisible
frames, and frames marked with `aria-hidden`.

A `title` attribute must contain meaningful text, e.g. numbers / letters, to be considered
valid. A title containing just spaces, or non-readable text (e.g. an emoji) will
be flagged as invalid.

# More information

Learn about [Technique H64](https://www.w3.org/WAI/WCAG21/Techniques/html/H64)
as part of [SC 2.4.1 - Bypass Blocks](https://www.w3.org/WAI/WCAG21/Understanding/bypass-blocks).

has-frame-title

Links must be appear visually distinct from regular text. A common mistake is to make links
only differ subtly in color. Users with visual impairments cannot see these links.

There are two ways to comply with this requirement:

1. You can make links appear differently from regular text without relying on color alone.
   For example, you can add an underline to your links. This makes links easy to identify, even
   to people who cannot see color at all.
2. You can make links a color which is very different from the surrounding text (a 3:1 ratio),
   AND ensure that when the link is selected with the keyboard or mouse that it appears
   differently from regular text without relying on color alone.

Unless you have disabled the `outline` CSS style, links will automatically appear visually distinct
when selected with the keyboard.

link-contrast

Webpages should provide a way to skip to the main content of the page. There are
several ways to accomplish this.

The most common solution is a "Skip to content" link:

```html
<a href="#main">Skip to main content</a>
...
<div id="main">
<h1>Welcome to this page</h1>
```

This link is usually hidden from users unless selected, so it doesn't need to compromise the look of
your page.

Alternatively, you can use the `<main>` HTML landmark:

```html
<main>
<h1>Welcome to this page</h1>
```

or an ARIA role of `main`:

```html
<div role="main">
<h1>Welcome to this page</h1>
```

Generally best practice is to combine these approaches, using `<main>` landmark with a link pointing to it:

```html
<a href="#main">Skip to main content</a>
...
<main id="main">
<h1>Welcome to this page</h1>
```

This approach will be most widely supported by screen readers and understood by the highest number of users.

# Justification

Many users of assistive technology are only able to experience content sequentially - that is, they must
step through each part of the page, one part at a time. Often this is a slow process, potentially
hampered by a physical impediment.

Most web pages have a header containing branding and navigation on every page. Stepping through
this repetitive part of the page can be hugely frustrating for users of assistive technology. For example,
a blind user may have to listen to hundreds of navigation links before they can reach the content on a page.

Adding a means to skip directly to the page content massively enhances the experience for these users.

Skip to content links do not need to be visible to everyone. A common implementation means they are only
experienced by users via the tab key or other assistive technology
(see [skipping to navigation links](https://webaim.org/techniques/skipnav/) from WebAIM).

# Methodology

It is not sufficient to include a "skip to content" link. The link must work, and it must appear early
enough in the page to be useful.

* If the page has less than 500 visible characters, it does not require a "skip to content" link.
* If the page has a main landmark (e.g. `<main>` or `role="main"`) it does not require a "skip to content" link.
* Silktide looks for a link with a fragment (e.g. `#main`) pointing to a lower part of the page. The link
  must not be adjacent to other text nodes.
* The fragment must point to an ID that exists, or this check will raise an error.
* The link must appear before 500 visible characters of text in the page, or this check will raise an error.

The text inside the link is not considered, as this test must support a wide range of languages.

# Learn more

More about [skipping to navigation links](https://webaim.org/techniques/skipnav/) from WebAIM and
see [W3C's recommended technique](https://www.w3.org/TR/2016/NOTE-WCAG20-TECHS-20161007/G1).

skip-to-content

An `<img>` element inside a link must not specify alternative text that duplicates the
content of a text link inside or beside it.

For example, this code should be avoided:

```html
<a href="/apple">
    <img src="apple.png" alt="Apple">
    Apple
</a>
```

Accessible technologies will tend to see this as "Apple Apple". The correct behaviour is to
specify either a null (empty) `alt` attribute:

```html
<a href="/apple">
    <img src="apple.png" alt="">
    Apple
</a>
```

or to hide the image via `aria-hidden`:

```html
<a href="/apple">
    <img src="apple.png" aria-hidden="true">
    Apple
</a>
```

# Learn more

Read about [Technique H2](https://www.w3.org/TR/WCAG20-TECHS/H2) on how to combine
an adjacent image and texts links.

See the [WAI Tutorial on decorative images](https://www.w3.org/WAI/tutorials/images/decorative/).

img-duplicate-alt

Every page should have a clearly defined heading, known as a "H1" (Heading 1).

A `H1` is the main heading of the page. It helps accessibility by allowing uses to
skip to the main content of the page. It helps all users identify what the page is about.
It helps SEO by giving special emphasis to the topic of the page.

It is not enough to simply include large text. Headings must be coded
[semantically](https://html.com/semantic-markup/) as `<h1>` tags, like so:

```html
<h1>This is a heading</h1>
```

Note that headings must contain some machine readable text to be considered valid.
For example, this heading is not valid:

```html
<h1>
    <img src="company-logo.png">
</h1>
```

But with the addition of `alt` text, this heading is valid:

```html
<h1>
    <img src="company-logo.png" alt="About Company Inc.">
</h1>
```

Generally we recommend you just use plain text for your headings.
See [Technique H42](https://www.w3.org/TR/WCAG20-TECHS/H42) for more details.

missing-h1

Every page should precisely specify what language(s) it is written in.

## Why this matters

Screen readers, which read out the text on a page, need to know the language to
pronounce it correctly. Without the language, text may sound like gibberish.

For example: imagine a computer pronouncing just one German word
"die" (pronounced "dee") using English pronunciation. Now extend that to every
word on the page.

Search engines may also use the language to classify pages, so this can have
an effect on SEO as well.

## How to fix

The `<html>` element should have a `lang` or `xml:lang` attribute which describes
the language of the page.

You will usually want to use the `lang` attribute as follows:

```html
<html lang="en-US">
```

(Note this example won't work for XHTML, which is deprecated and highly discouraged).

Make sure you specify a [valid language code](http://www.rfc-editor.org/rfc/bcp/bcp47.txt).

## More information

See [Technique H57](https://www.w3.org/TR/2016/NOTE-WCAG20-TECHS-20161007/H57).

html-lang-required

All field sets should contain a legend which describes its contents.

Whenever the `<fieldset>` element is used, it should contain a valid `<legend>` element, which
describes the contents of the field group.

## Further reading

See [how to provide a description for groups of form controls using fieldset and legend elements](https://www.w3.org/TR/WCAG20-TECHS/H71).

add-legend-to-fieldset

All table headers should define a valid `scope` attribute, which tells assistive technologies
what the header refers to.

For example:

```html
<table>
    <thead>
    <tr>
        <th scope="col">Name</th>
        <th scope="col">Age</th>
    </tr>
    </thead>
    <tbody>
    <tr>
        <td>Bob</td>
        <td>35</td>
    </tr>
    <tr>
        <td>Sue</td>
        <td>45</td>
    </tr>
    </tbody>
</table>
```

In this example, the `scope` attribute indicates the two `<th>` cells are column
headers, which allows assistive technologies to read out those headers alongside
each `<td>` cell.

Without this information, the structure of the table is only apparent to people
who are able to see it.

add-scope-attribute-to-table-headers

Form controls must appear sufficiently distinct from their surroundings, so that people
with visual impairments are still able to clearly see them.

Either the border or the form control itself must have a 3:1 colour contrast with the
surrounding area.

## Methodology

* All `<input>`, `<textarea>`, and `<select>` elements are checked.
* For `<input>` elements, these types are ignored as their
  appearance is controlled by the browser or operating system:
  `checkbox`, `radio`, `submit`, `reset`, `image`, `hidden`, `file`.
* The flattened background color of the control is determined. This is the color of the
  control itself, combined with any parent elements if the control is transparent.
* If the control has a border or outline:
  * The flattened background color of each edge is determined.
    This is the color of the edge itself, combined with any parent elements
    if the edge is transparent.
  * If any edge has sufficient contrast with the flattened background color of the control,
    the control is considered to have sufficient contrast.
* If the control does not have a border or outline:
  * The flattened background color of the surrounding
    area is determined. This is the color of the first control's parent element which is at least
    one pixel larger around the element in every dimension, i.e. above, below, left, and right.
  * If the background color of the element has sufficient contrast with surrounding area color
    the control is considered to have sufficient contrast.

## Troubleshooting

There are some limitations to the contrast checker:

* The use of drop shadows, glowing effects, gradients, and other complex effects
  mean there is no one clear color to determine the contrast ratio against.
  In these cases, the contrast ratio cannot currently be determined.
* It is possible for an element to be positioned over multiple elements, e.g. via
  `position: absolute` or `position: fixed`. In this case, the contrast ratio cannot
  currently be determined.

## Further reading

* [WCAG 1.4.11](https://www.w3.org/WAI/WCAG21/Understanding/non-text-contrast.html)

non-text-contrast

Forms should always contain a submit button, otherwise some people using
accessible technologies may not be able to submit the form.

Submit buttons are `<input>` elements with a type attribute of `submit` or
`image`, or `<button>` elements with type `submit`.

## Rationale

Many users expect to be able to press enter in a form to submit it. However,
this is not always possible.

Users of some assistive technologies may (depending on the technology) only
be able to press a button to submit the form. In the absence of a submit
button, the user may not be able to submit the form.

In addition, the absence of a submit button suggests that the form may
provide an automatic 'change of context', i.e. major change to the user
interface without the user choosing to do so. This can be highly disorientating
to some users.

## Further reading

See [Technique H32](https://www.w3.org/TR/WCAG20-TECHS/H32.html).

form-submit-required

To comply with WCAG 2.1, fields must identify what their purpose is _programmatically_. If done correctly,
this allows browsers to help users fill in forms with known information, such as their name and email address.

This is accomplished via the `autocomplete` attribute, which should be set to a
[supported value](https://developer.mozilla.org/en-US/docs/Web/HTML/Attributes/autocomplete) wherever
appropriate, e.g.

```html
<label for="name">
  First Name
</label>
<input id="name" type="text" autocomplete="given-name">
```

For fields where `autocomplete` is not appropriate, e.g. due to security, or the field not matching the
specification, the specific field should be ignored.

## Methodology

* All fields which could support `autocomplete` (e.g. text fields)
  are checked. Other fields - like dropdown menus - are ignored.
* The [accessible name](https://www.w3.org/TR/accname-1.2/) of each field is considered. In most cases this
  will be the `<label>` for the field.
* If the name matches a known pattern the field
  must have an appropriate `autocomplete` value specified.
  For example, an `<input>` with type `text` with a label of
  "First Name" would be expected to have an autocomplete value
  of `given-name` or similar.

Note that using `autocomplete="on"` is not sufficient to pass this check, a
specific named autocomplete value must be used. See the
[supported values](https://developer.mozilla.org/en-US/docs/Web/HTML/Attributes/autocomplete).

## Troubleshooting

If a field is a false positive, check whether the field has an
appropriate accessible name (i.e. a `<label>` or `aria-label`).

If the label is incorrect, Silktide may assume that the field
requires `autocomplete` where it does not. You should fix the
label to avoid this.

Otherwise, you can simply ignore the specific field.

## More information

* [How to use HTML 5.2 attributes](https://www.w3.org/WAI/WCAG21/Techniques/html/H98)

Priority	Recommendation	Progress
	Ensure pages don't scroll in two dimensions on small screens WCAG 2.1 AA 1.4.10	77.8%
	Ensure controls clearly indicate when they are selected WCAG 2.2 AA 2.4.11	87.5%
	Ensure content is not too difficult to understand WCAG 2.0 AAA 3.1.5	41.5%
	Avoid linking to anchors that do not exist WCAG 2.0 A 2.4.1	44.1%
	Tag all PDFs WCAG 2.0 A 1.3.1	60%

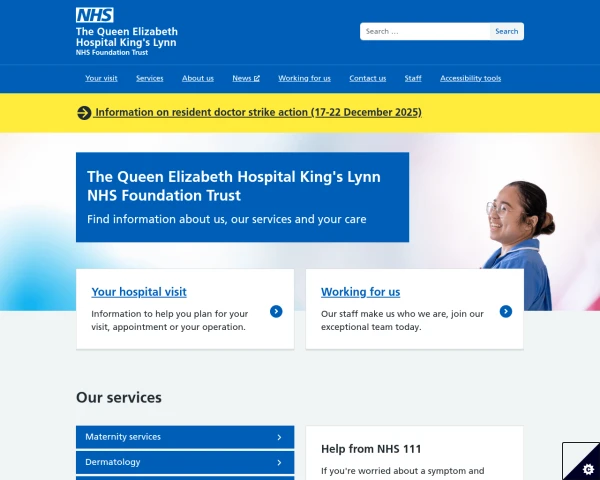

The Queen Elizabeth Hospital King's Lynn NHS Foundation Trust

Accessibility

WCAG Levels

Recommendations

The best free accessibility checker
